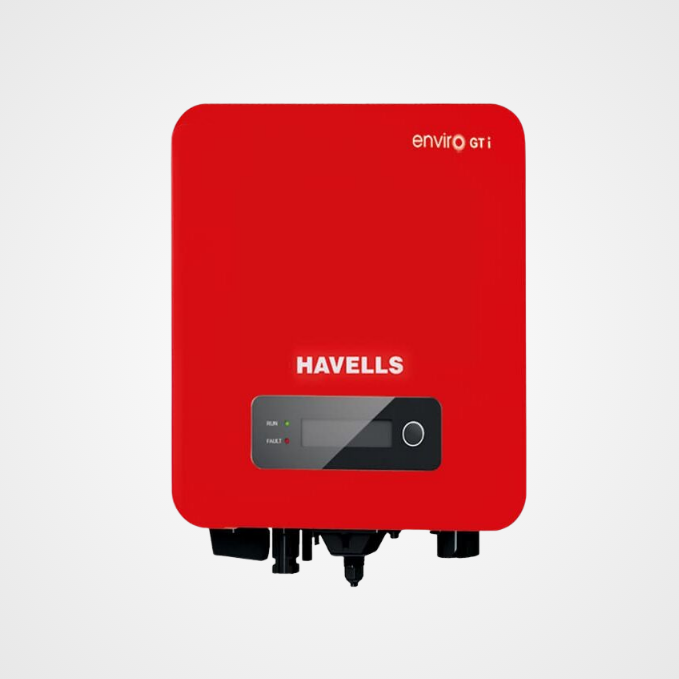

Havells 2.20 kW Solar On-Grid Inverter

Key Features and Performance

This solar inverter is rated for $\text{2200 W}$ (Rated Power) and can deliver a maximum AC power of 2200 VA.

• Maximum Efficiency: Achieves up to 98% efficiency, ensuring maximum energy harvest from your solar panels.

• Low Self-Consumption: Consumes less than 1 W at night, minimizing energy loss.

• Topology: Uses a Transformerless design, making it lightweight (5.5 kg) and compact (Dimension: 30.3 cm x 26.05 cm x 11.8 cm) for easy installation.

• Cooling: Natural Cooling eliminates the need for fans, resulting in quiet operation and lower maintenance.

• Durability: The IP 65 degree of protection means it is completely sealed against dust and protected against water jets, making it perfectly suited for outdoor installation.

Input and MPPT Specifications

The inverter is built to handle modern solar arrays with robust input capabilities:

• $\text{MPPT}$: Features one $\text{MPPT}$ (Maximum Power Point Tracker) and one string per MPPT.

• $\text{MPPT}$ Operating Voltage Range: A wide range of 50 V – 500 V ensures power generation even during low-light conditions.

• Maximum Input Voltage: 500 V.

• Rated Input Voltage: 360 V.

• Input Current: Maximum input current per MPPT is 12 A, with a short-circuit current limit of 15 A.

Output and Grid Specifications

• Rated Power & Current: 2200 W rated power with a rated output current of 9.60 A.

• Nominal Grid Voltage: Compatible with standard single-phase grid voltages: $\text{220 V AC}$, $\text{230 V AC}$, $\text{240 V AC}$ (L/N/PE).

• Grid Frequency Range: 45 Hz – 55 Hz.

Operational Environment

• Operating Temperature Range: Designed to perform reliably in extreme weather, from $\text{-25 °C}$ to $\text{+60 °C}$.

• Surge Protection Device ($\text{SPD}$): Includes a standard MOV (Metal Oxide Varistor) Type $\text{III}$ $\text{SPD}$ for protection against voltage surges.
